- Display
Display Technology: 0.3" DLP®
Light Source: R/G/B LED
Light Source Life (max): 30000 hours
True Resolution (native): WVGA(854x480)
Light Output (max): 200 lumens
Contrast Ratio: 1000:1
Color Saturation :100%(NTSC)
Display Colors :16.7M
- Projection Lens
Throw Ratio: 1.1
Projection Distance: 0.73 ~2.43 meters
Projection/Screen Size: 30 ~100 inchs
Projection Offset:
Zoom Ratio: Fixed
- Video Feature
Picture Modes: 4 Modes, (Battery Mode/Presentation Mode/Theater Mode/Standard Mode)
Aspect Ratio: Auto/4:3 /16:9
Projector Placement: Front Table/Front Ceiling/Rear Table/Rear Ceiling
- Audio Features
Built-in Speaker: 2 W x 1
- Power
Power Consumption:
Power On Mode: ≤32 W
Standby Mode: <0.5 W

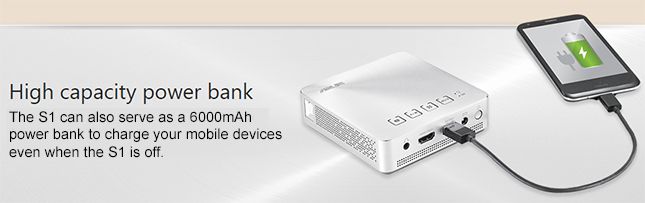

Internal Battery: 5 V, 6000 mAh, Battery life: 3 hours @ 50 lumens *1
- Noise Level
32 dB(Standard mode)/ 28 dB (Battery mode)
- Interface
Signal Input : HDMI, MHL
Audio Output : Earphone out
USB Port : 1 x Type A port, *2
- Mechanical Design
Chassis Colors: Silver
On-machine Buttons: Yes, ()
Tripod Socket: Yes
- Dimensions
Physical Dimension(WxHxD):110.5 x 30.7 x 102 mm
Box Dimension (WxHxD):186 x 122 x 240mm
- Weight
Net Weight (Esti.):342g
Gross Weight (Esti.):1.82kg
- Operation Temperature
0~40℃
- Operation Humidity
20-90% RH
- Accessories
Carrying Bag
HDMI cable
MHL cable
Power Cord
Power Adapter
Quick Start Guide
USB cable
Warranty card
- Regulation Approval
CB/ CE/ FCC/ VCCI/ UL/ CU/ C-Tick/ CCC/ TUV-GS/ PSE
- Note
*Video Compatibility: NTSC, PAL, SECAM, 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
*Extended Features: Flashlight Mode and Emergency Light Mode while powered by battery without signal input
*1. The battery has a lifespan and ages every time when it is charged and discharged. It will gradually loose its charging capability as it ages.
*2. for power charge usage
