Highly Secure, Reliable Connectivity for the Small Business Network
The Cisco® RV082 Dual WAN VPN Router delivers highly secure, high-performance, reliable connectivity -
to the Internet, other offices, and employees working remotely - from the heart of your small business network.
This proven router provides the performance and security you need to help keep your employees, and your business,
productive.
The Cisco RV082 enables two connections, either to a single service provider, with load balancing to improve
performance, or to different providers to support business continuity. High-capacity virtual private network
(VPN) capabilities let multiple offices and dozens of employees access the information they need from anywhere,
just as securely as if they were working at your main office.
To further safeguard your network and data, the Cisco RV082 includes business-class security features and
optional cloud-based web filtering. Configuration is a snap, using an intuitive, browser-based device manager
and setup wizards.
Figure 1. Cisco RV082 Dual WAN VPN Router
Features
- Dual 10/100 Mbps Fast Ethernet WAN ports to provide load balancing and/or business continuity
- Built-in 8-port Fast Ethernet switch
- Strong security: Proven stateful packet inspection (SPI) firewall, hardware encryption
- High-capacity, high-performance IPsec VPN capabilities
- Optional Cisco ProtectLink Web cloud-based security service for dynamic URL filtering and web threat protection
- Intuitive, browser-based device manager and setup wizards
Figure 2. Front Panel of the Cisco RV082

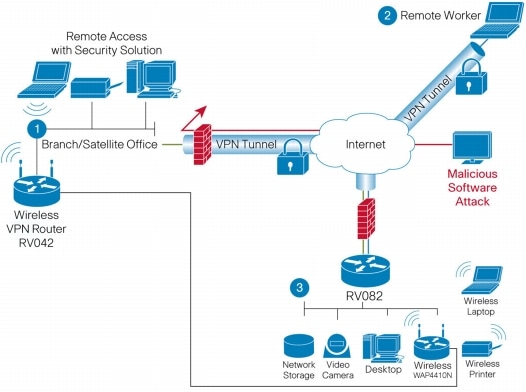

Figure 3. Typical Configuration
Product Specifications
Table 1 lists the product specifications for the Cisco RV082.
Table 1. Product Specifications
Specifications |
Dual WAN | Configurable for Smartlink backup or load balancing |
Standards | 802.3, 802.3u IPv4 (RFC 791) Routing Information Protocol (RIP) v1 (RFC 1058) and v2 (RFC 1723) |
Network protocols | Dynamic Host Configuration Protocol (DHCP) server, DHCP client, DHCP relay agent Static IP Point-to-Point Protocol over Ethernet (PPPoE) Point-to-Point Tunneling Protocol (PPTP) Transparent bridge DNS relay, Dynamic DNS (DynDNS, 3322) |
Routing protocols | Static RIP v1 and v2 |
Network Address Translation (NAT) | Port Address Translation (PAT) Network Address Port Translation (NAPT), NAT traversal, one-to-one NAT |
Protocol binding | Protocols can be bound to a specific WAN port for load balancing |
Network edge (DMZ) | DMZ port, DMZ host |
Security |
Firewall | SPI, denial of service (DoS), ping of death, SYN flood, land attack, IP spoofing, email alert for hacker attack |
Access rules | Up to 50 entries |
Port forwarding | Up to 30 entries |
Port triggering | Up to 30 entries |
Blocking | Java, cookies, ActiveX, HTTP proxy |
Content filtering | Static URL blocking or keyword blocking |
Web filtering | Optional Cisco ProtectLink Web cloud-based security service |
Secure management | HTTPS, username/password, password complexity |
VPN |
IPsec | 100 IPsec site-to-site tunnels for branch office connectivity |
QuickVPN | 50 QuickVPN tunnels for remote client access |
PPTP | 5 PPTP tunnels for remote access |
Encryption | Data Encryption Standard (DES), Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption AES-128, AES-192, AES-256 |
Authentication | MD5/SHA1 authentication |
IPsec NAT traversal | Supported for gateway-to-gateway and client-to-gateway tunnels |
VPN pass-through | PPTP, L2TP, IPsec |
Advanced VPN | Dead peer detection (DPD), IKE, split DNS, VPN backup |
Quality of Service (QoS) |
Prioritization types | Application-based priority on WAN port |
Service-based QoS | Supports rate control or priority |
Rate control | Upstream/downstream bandwidth can be configured per service |
Priority | Each service can be mapped to one of 3 priority levels |
Performance |
NAT throughput | 200 Mbps |
IPsec VPN throughput | 97 Mbps |
Configuration |
Web user interface | Simple browser-based device manager (HTTP/HTTPS) |
Management |
Management protocols | Web browser, Simple Network Management Protocol (SNMP) v1 and v2c, Bonjour |
Event logging | Syslog, email alerts, VPN tunnel status monitor |
Upgradability | Firmware upgradable through web browser, imported/exported configuration file |
System Specifications
Table 2 lists the system specifications for the Cisco RV082.
Table 2. System Specifications
Product dimensions
(W x H x D) | 11.00 in. x 1.75 in. x 9.50 in. 279.4 mm x 44.45 mm x 241.3 mm |
Ports | 8 10/100 RJ-45 ports, 1 10/100 RJ-45 Internet port, 1 10/100 RJ-45 DMZ/Internet port |
Power | AC 100~240V, 50~60Hz |
Certification | FCC class B, CE Class A cUL, Anatel, MEPS, CCC, PSB, CB, C-tick, KCC |
Operating temperature | 0° to 40°C (32° to 104°F) |
Storage temperature | 0° to 70°C (32° to 158°F) |
Operating humidity | 10% to 85% noncondensing |
Storage humidity | 5% to 90% noncondensing |
